Product Details:
Payment & Shipping Terms:
|
Model |

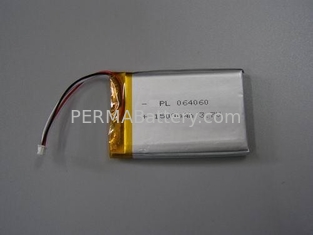

Li-polymer604060
|
Nominal voltage | 3.7V |
Nominal capacity | 1500mAh |
Size | 6.2× 40× 65mm at Max |
Advantage |
|
Max charge current | 1C |
Charging method | charge with constant current 1C to 4.2v,then charge with constant voltage 4.2v, till charge current less than 0.01C |
Max discharge current | 1C |
Discharge cut-off voltage | 2.75v, the over-discharge detection voltage of PCM |
Operating environment | Charging, 0°C ~ 45°C ; 65±20%RH |
Discharging, -20°C~60°C ; 65±20%RH | |
Storage environment | -20°C~45°C |
65±20%RH | |
storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH; | |
CycleLife (80% Prime Capacity) : |
>500times |
Charging Attention | Charging current and charging voltage should be less than specified in the Product Specification. |
The charger shall be designed to comply with Specification. | |
It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance. |
