Product Details:
Payment & Shipping Terms:
|
| Size: | 7.2X34X52mm At Max | Voltage: | 3.7V |
|---|---|---|---|
| Weight: | 42g | Nominal Capacity: | 1100mAh |
| Type: | Li-Ion |

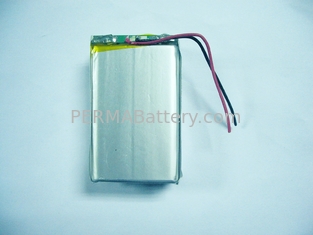

3.7V 1100mAh 703448 Li-ion Polymer Battery Pack
3.7V 1100mAh Battery Pack
3.7V Li-ion Polymer rechargeable battery made of high quality 703448 cell with PCB and connector
Description:
Cell: 703448
Capacity: 1100mAh
Voltage: 3.7V
Battery Pack: 1S1P 3.7V 1.1AH
Pack: PVC Shrink tube
Prewired: 24 AWG wire with connector (can be equipped as per customer's requirement)
Weight: 40g
Specification:
Charging Voltage: 4.2V CC/CV
Maximal continuous charging current: 1A
Over charge protection:
Over charge detection voltage: 4.28V +/- 0.025V
Over charge release voltage: 4.08 +/- 0.025V
Over discharge protection:
Over discharge detection voltage: 3.0V +/- 0.05V
Over discharge release voltage: 3.0V +/- 0.05V
Over Current protection
Short circuit protection:
Exterior Short Circuit and can be automatic recovery
Operating Temperature:
Charging temperature: 0 +/- 45 C degrees
Discharging temperature: -20 +/- 60 C degrees
Storage temperature: -20 +/- 45 C degrees
Battery Expert for Your Battery Pack Design & Manufacture!
