Product Details:
Payment & Shipping Terms:
|
Size: | 19X38X70mm At Max | Voltage: | 7.4V |
---|---|---|---|
Weight: | 100g | Nominal Capacity: | 2600mAh |
Type: | Li-Ion |

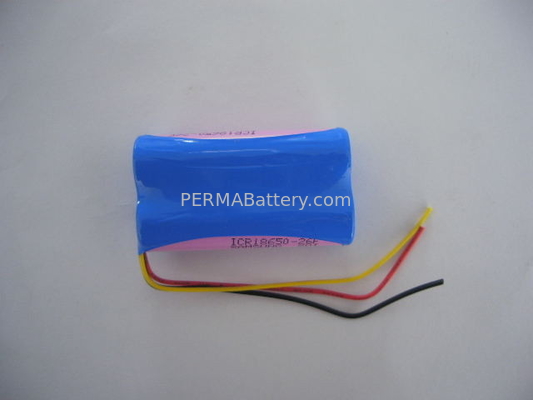

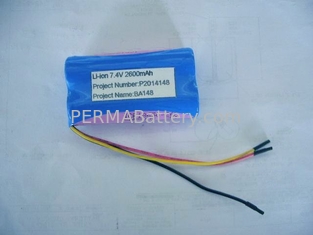

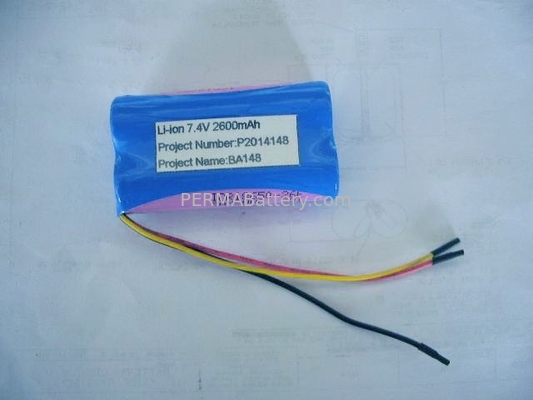

7.4V 2600mAh 18650 Li-ion Battery Packs
7.4V 2600mAh Battery Pack
7.4V Li-ion rechargeable battery made up of 2pcs of high quality Cylindrical 18650 cells with PCB and Connector
Description:
Cell: 18650 (High quality SAMSUNG 18650)
Capacity: 2600mAh
Voltage: 7.4V
Battery Pack: 2S1P 7.4V 2.6AH
Pack: PVC Shrink tube
Prewired: 28 AWG wire with connector (can be equipped as per customer's requirement)
Weight: 100g
Specification:
Charging Voltage: 8.4V CC/CV
Maximal continuous charging current: 2.5A
Over charge protection:
Over discharge protection:
Over Current protection
Short circuit protection:
Exterior Short Circuit and can be automatic recovery
Operating Temperature:
Charging temperature: 0 +/- 45 C degrees
Discharging temperature: -20 +/- 60 C degrees
Storage temperature: -20 +/- 45 C degrees
